Banshee announces three new highly anticipated and significantly updated trail and all mountain models. Utilising the same KS2 linkage as the critically acclaimed Titan and Rune V3, each model has kinematics specifically tuned, and geometry optimized for ideal weight distribution for its intended use …these frames mean business.
While the model names might be familiar, they have been significantly been upgraded. Technologically advanced forging and hydroforming was used throughout the designs to ensure that these frames offer incredible levels of performance on the trail. Offering more traction, better efficiency and a true feeling of confidence that result in these frames in being faster, and simply having more fun.

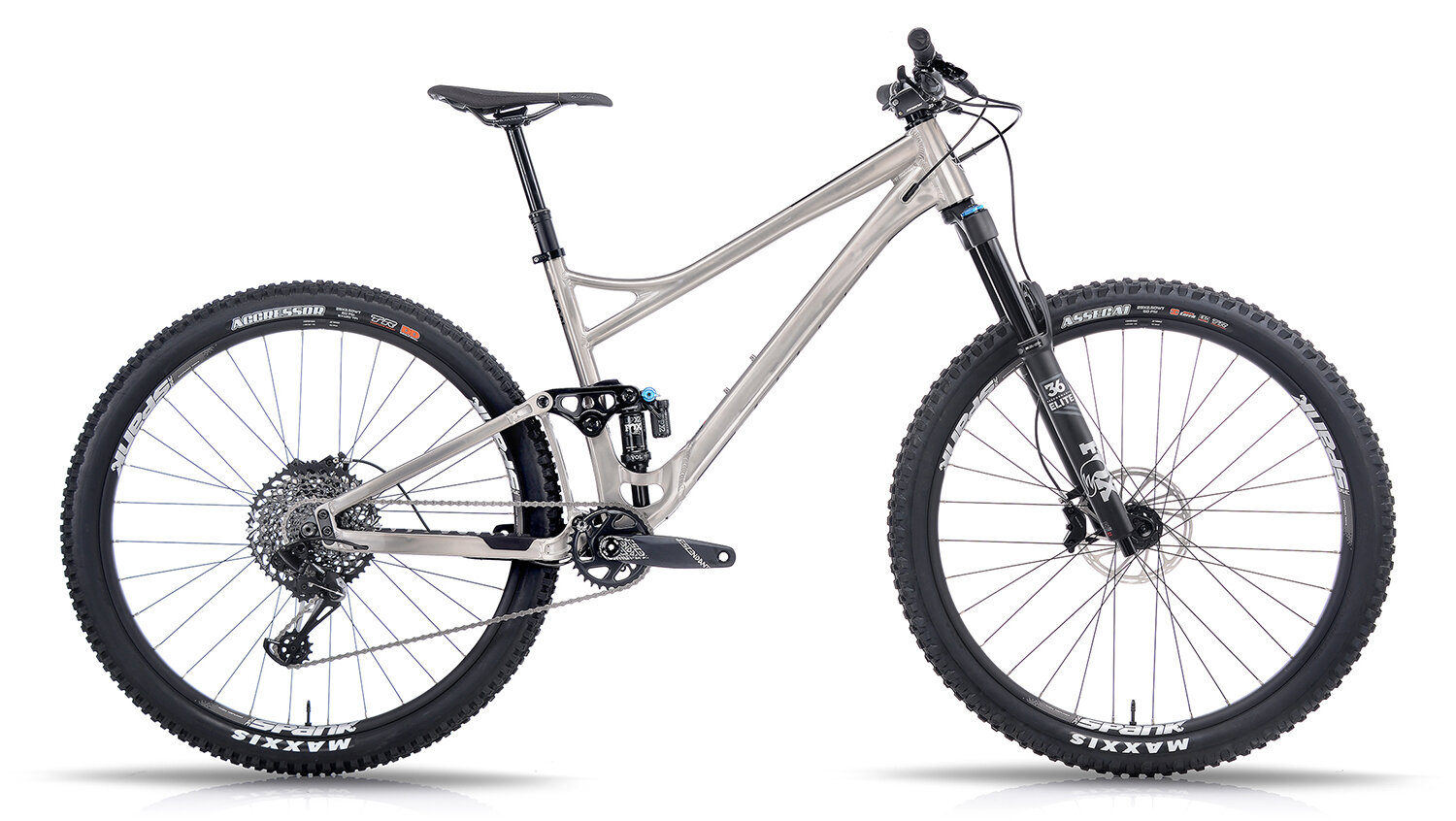

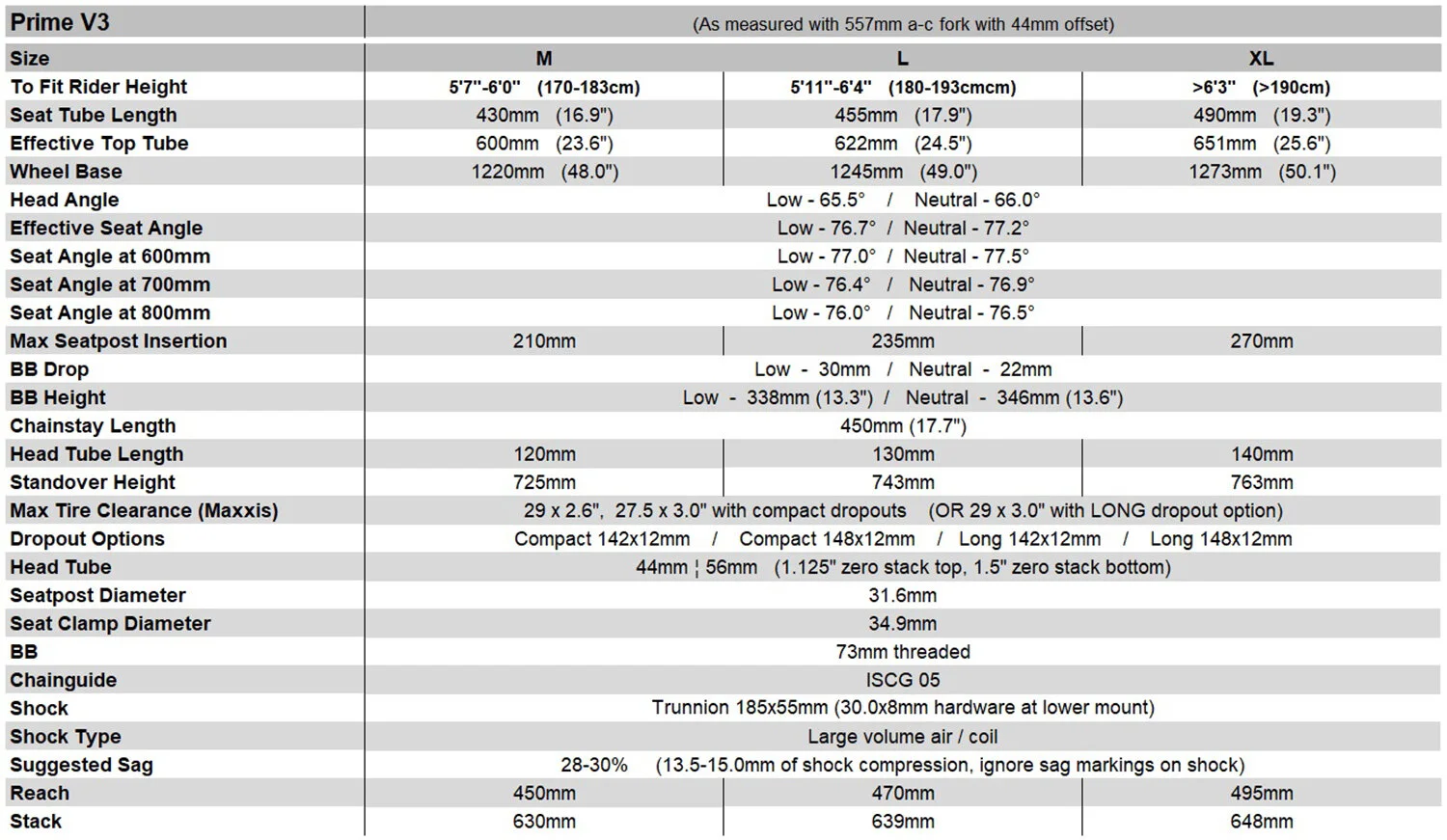

Prime V3 – 29” 135mm rear travel
KS2 linkage with custom tuned Fox DPX2 Performance Elite 185x55mm metric trunnion shock
Progressive linkage with low 2.45:1 leverage ratio
65.5° – 66.0° Head angle 76.7° – 77.2° Effective seat angle
Adjustable geometry via modular dropouts (also enables optional 27.5+ and 29+ setups)
Mullet compatible (27.5” rear / 29” front)
140-160mm fork travel
Ability to run bottle cage inside front triangle
Internal cable routing (also works with moto-style)
Frame Weight: 3.7kg (8.2lbs) – size medium black with Fox DPX2 shock, dropouts, rear axle, and seat clamp)
Spitfire V3 – 27.5 135mm rear travel
KS2 linkage with custom tuned Fox DPX2 Performance Elite 185x55mm metric trunnion shock
Progressive linkage with low 2.45:1 leverage ratio
65.0° – 65.5° Head angle 76.5° – 77.0° Effective seat angle
Adjustable geometry via modular dropouts (also enables optional 26” setups if so inclined)
Mullet compatible (26” rear / 27.5” front, or 27.45 rear and 29” front)
140-160mm fork travel (130-140mm if running 29” front wheel)
Ability to run bottle cage inside front triangle
Internal cable routing (also works with moto-style)
Frame Weight: 3.55kg (7.8lbs) – size medium black with Fox DPX2 shock, dropouts, rear axle, and seat clamp)

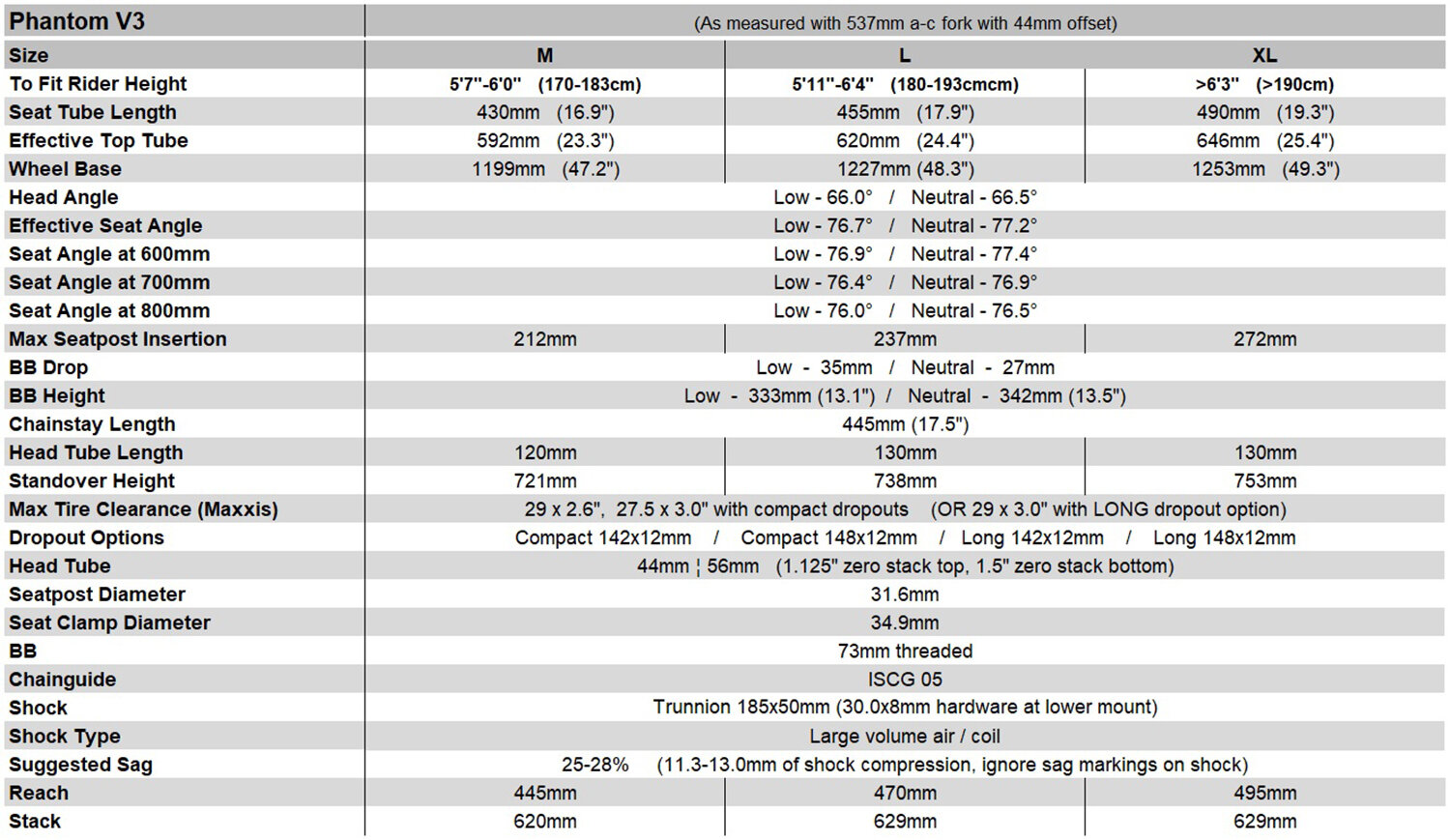

Phantom V3 – 29” 115mm Rear Travel
KS2 linkage with custom tuned Fox DPX2 Performance Elite 185x50mm metric trunnion shock
Progressive linkage with very low 2.3:1 leverage ratio
66.0° – 66.5° Head angle 76.7° – 77.2° Effective seat angle
Adjustable geometry via modular dropouts (and enables optional 27.5+ and 29+ setups)
Mullet compatible (27.5” rear / 29” front)
120-140mm fork travel
Ability to run bottle cage inside front triangle
Internal cable routing (also works with moto-style)
Frame Weight: 3.55kg (7.8lbs)- size medium black with FOX DPX2 shock, dropouts, rear axle, and seat clamp
